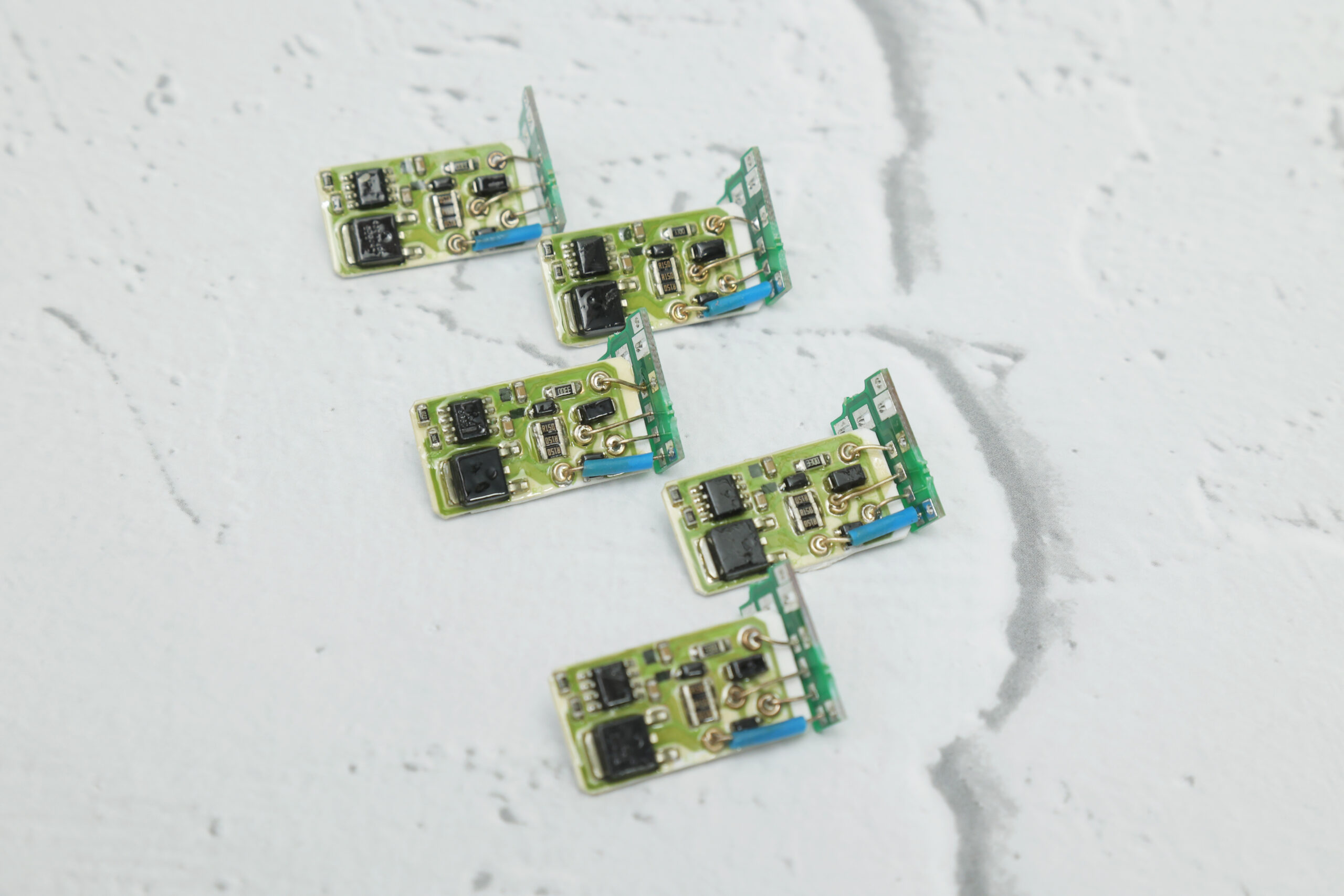

Film Electronics manufactures thick film ignition coil driver circuits designed for precision ignition control in 2-wheeler, 4-wheeler, and generator platforms.

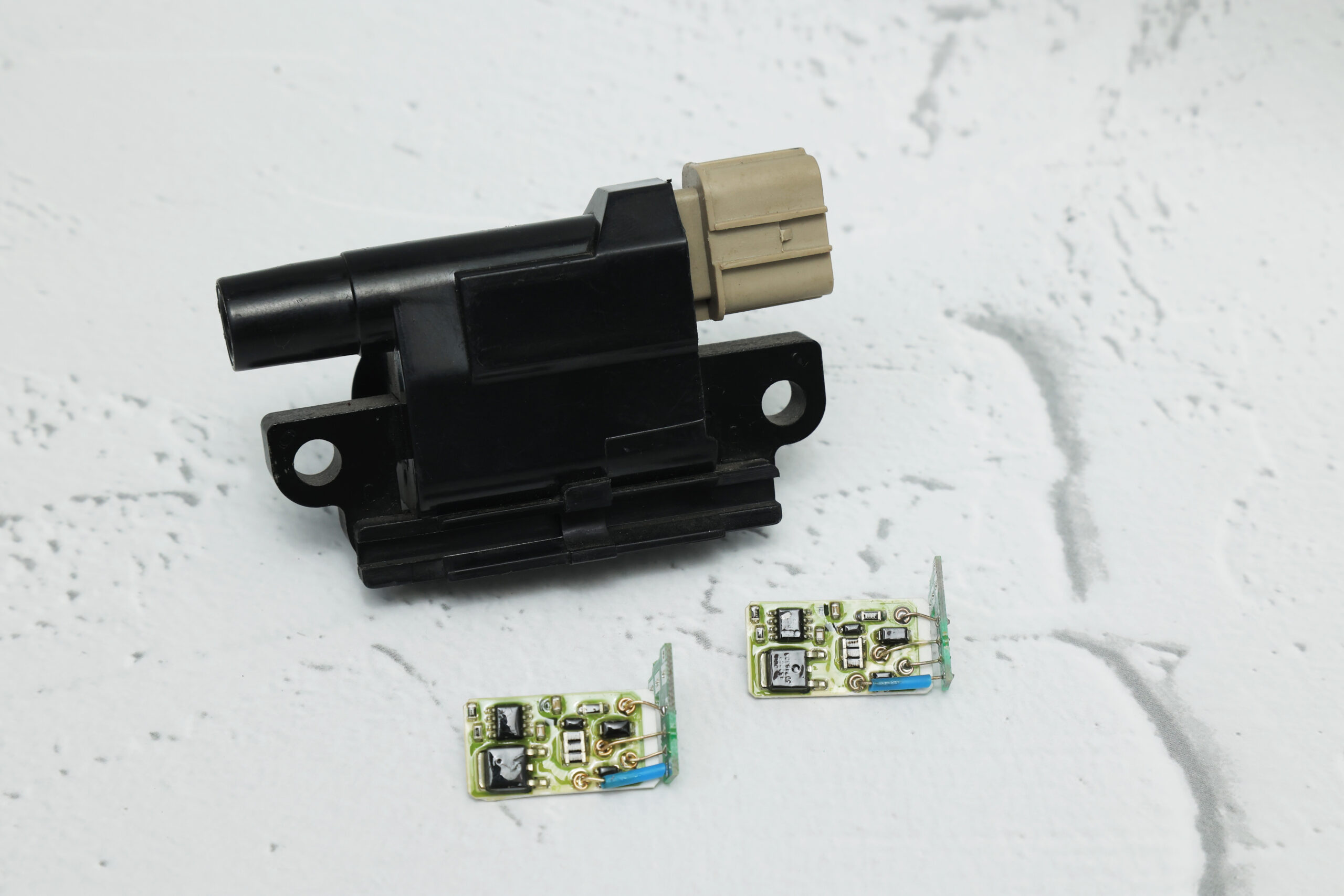

Built to be embedded inside the ignition coil itself, these drivers offer high-voltage switching performance while ensuring durability and thermal stability.
The circuit incorporates an automotive-grade IGBT with built-in Zener diode and gate resistors, eliminating the need for external clamping and reducing part count. The low saturation voltage of the IGBT enhances overall efficiency, making it ideal for compact and power-sensitive systems.
Key Specifications:
Input Voltage: 14.4V ± 0.3V
Operating Frequency: 50 Hz
Ignition Coil Output Range: 28–33 kV
Operating Temperature: -40°C to 175°C
Qualification: AEC-Q101 compliant, RoHS (Pb-free)
We can also design any custom specs as per your requirements.
