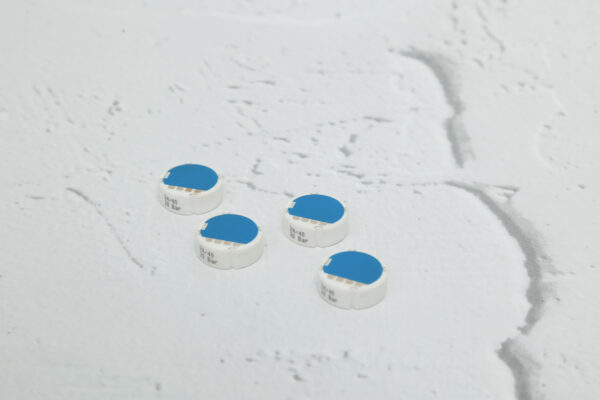

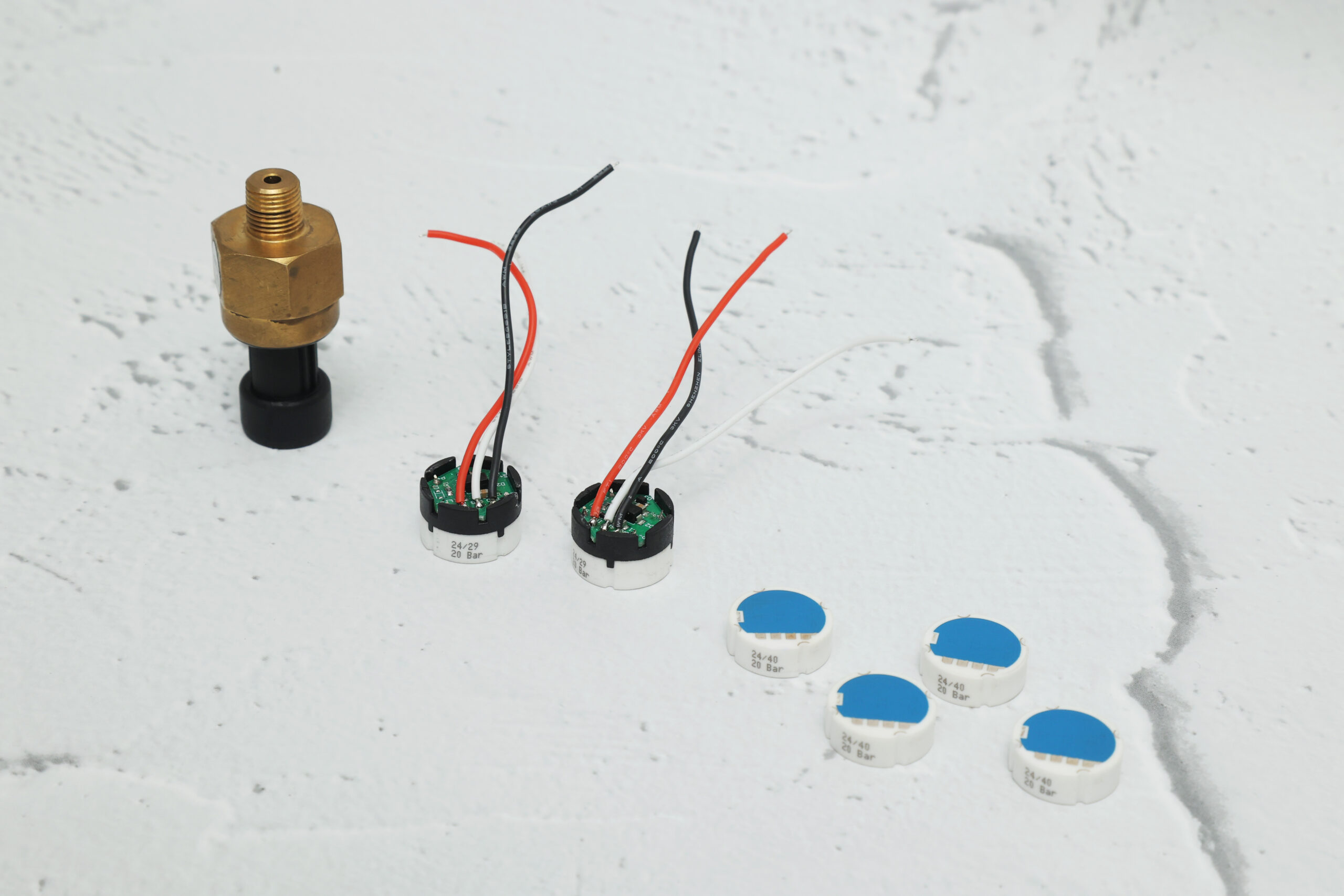

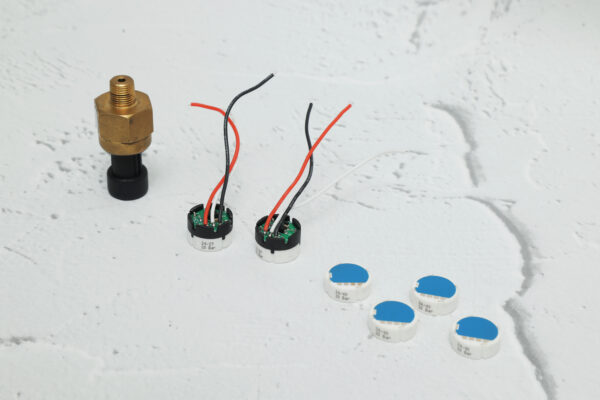

At Film Electronics Piezo-resistive pressure sensor element is built using 96% alumina ceramic and thick film hybrid technology. The sensing bridge is directly printed on the ceramic diaphragm, allowing direct contact with the medium — eliminating the need for protective isolation and enhancing thermal and mechanical stability.
Engineered for automotive, industrial, refrigeration, and IoT applications, the FE-PS ensures high linearity, low hysteresis, and exceptional long-term stability under wide operating conditions. With built-in laser-trimmed resistance balancing and a highly optimized bridge layout, the sensor offers reliable performance even in the presence of rapid temperature fluctuations, overloads, and pressure cycling.
Key Specifications:
Pressure Range: 0-10bar, 0-20bar
Overload / Burst Pressure: 2 times Input pressure
Response Time: <1ms
Sensitivity: Typ. 3.0mV/V/FS
Operating Temp: -40°C to +135°C
Form Factor: Ø18mm × 6.4mm height
Durability: >2 million cycles @ 2–5Hz
We can also design any custom specs as per your requirements.
